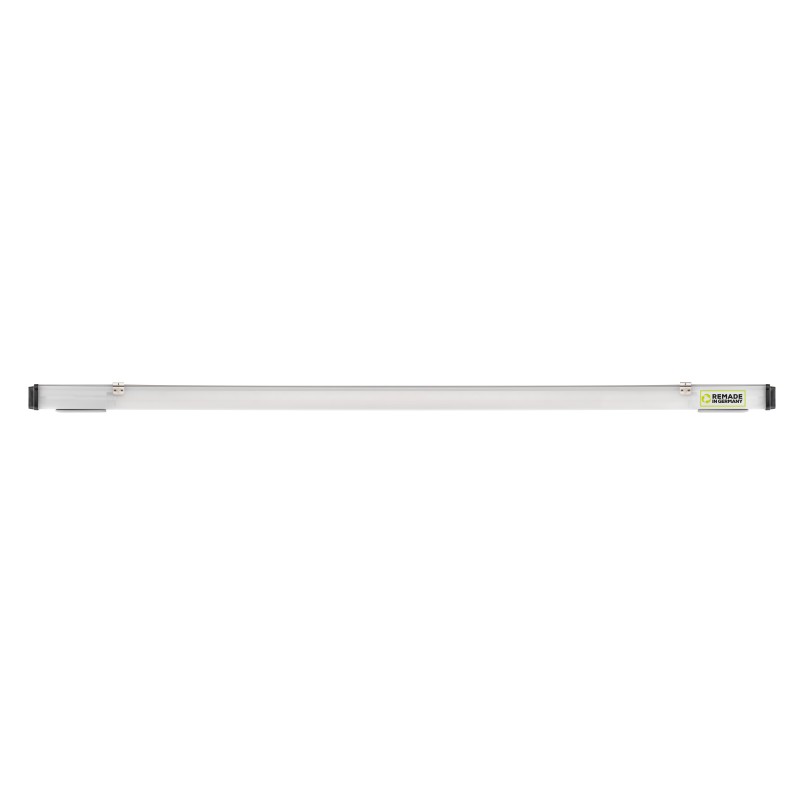

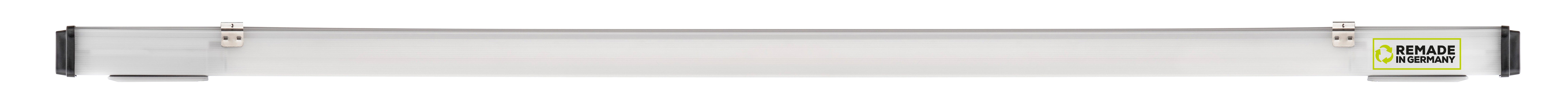

9128610 KATLA SKII REMADE DALI 1745mm PCO 1x20W 120° 2600lm
KATLA SKII REMADE DALI 1745mm PCO 1x20W 120° 2600lm, 4000K, class II, with TW 2x1,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 99% recycled material. KATLA SKII REMADE: Sustainable moisture-proof luminaire made from 99% recycled plastic, IP66-certified, with replaceable components, wide-angle 120° optics and versatile mounting options - environmentally friendly and powerful.
- World's first moisture-proof luminaire made from 100% recycled plastics (PC-OPAL recyclate)
- Configurable class II moisture-proof profile luminaire in IP66 and up to 4800lm
- Impact-resistant housing made from PC-OPAL
- 3x1,5mm² through-wiring ex works

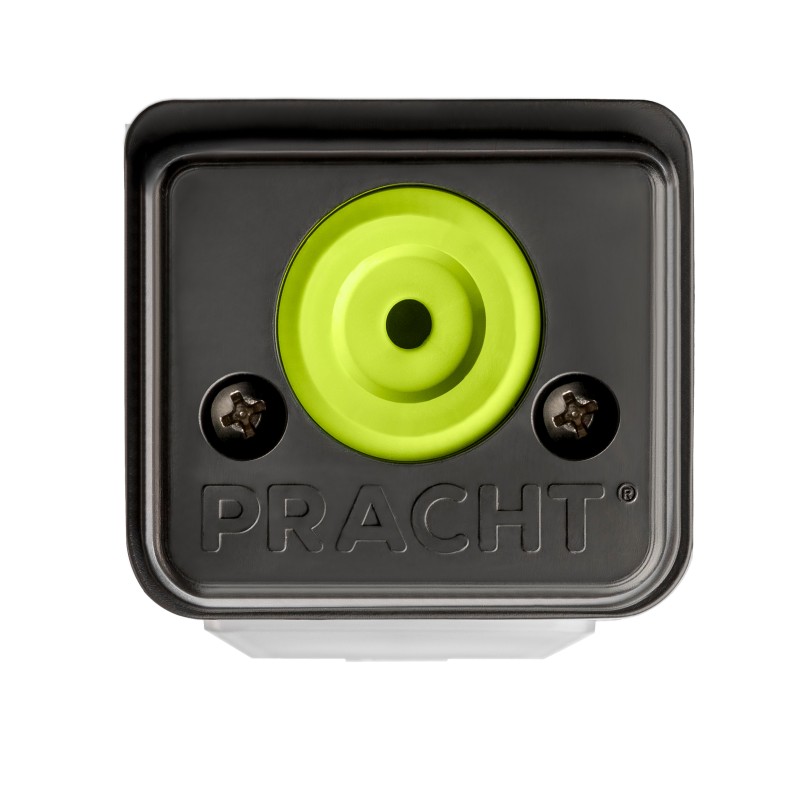

- variable mounting distances thanks to PRACHT CLAMP SYSTEM
- suitable for ceiling, horizontal wall, pendant and trunking mounting
- class II
technical data
| Dimensions (L x W x H) | 1745 x 59 x 62 mm |
|---|---|
| Luminous flux | 2600 lm |
| Performance | 20 W |
| Luminous efficacy | 130 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 2x1.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1745 mm |
| Color rendering Ra | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 22.5 / 23.5 |
| IP protection class | IP65 IP66 |
| IK Impact resistance | IK07 |
| Protection class | SK II |
| Temperature range | -25 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 189090 h |
| Lifetime L80B50 (@Ta 25°C) | 118490 h |
| Lifetime L90B50 (@Ta 25°C) | 56231 h |
| Lifetime L70B10 (@Ta 25°C) | 142194 h |
| Lifetime L80B10 (@Ta 25°C) | 89418 h |
| Lifetime L90B10 (@Ta 25°C) | 42866 h |
| Lifetime L70B50 (@Ta max) | 174846 h |
| Lifetime L80B50 (@Ta max) | 110002 h |
| Lifetime L90B50 (@Ta max) | 52531 h |
| Line protection B16A | 15 Luminaires |
| Line protection C16A | 25 Luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9128610NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| REMADE Score | 99 % |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 45 °C |
| Certification mark | ENEC |
| Energy efficiency class Light source | D |
| Dimming/Control | DALI |
Tender text
Sustainable Profile luminaire KATLA SKII REMADE DALI 1745mm PCO 1x20W 120° 2600lm 4000K, class II, with TW 2x1,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 99% recycled material. KATLA SKII REMADE: Sustainable moisture-proof luminaire made from 99% recycled plastic, IP66-certified, with replaceable components, wide-angle 120° optics and versatile mounting options - environmentally friendly and powerful. Item number: 9128610 GTIN: 4018098352594 Technical details/specification: Cover made of PCOr - Polycarbonate OPAL Recyclate; Housing made of PC-PBT Recyclate opalized; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 2x1.5+2x1.5 (DALI); Dimensions: LxWxH: 1745mm x 59mm x 62mm; Diameter: mm
