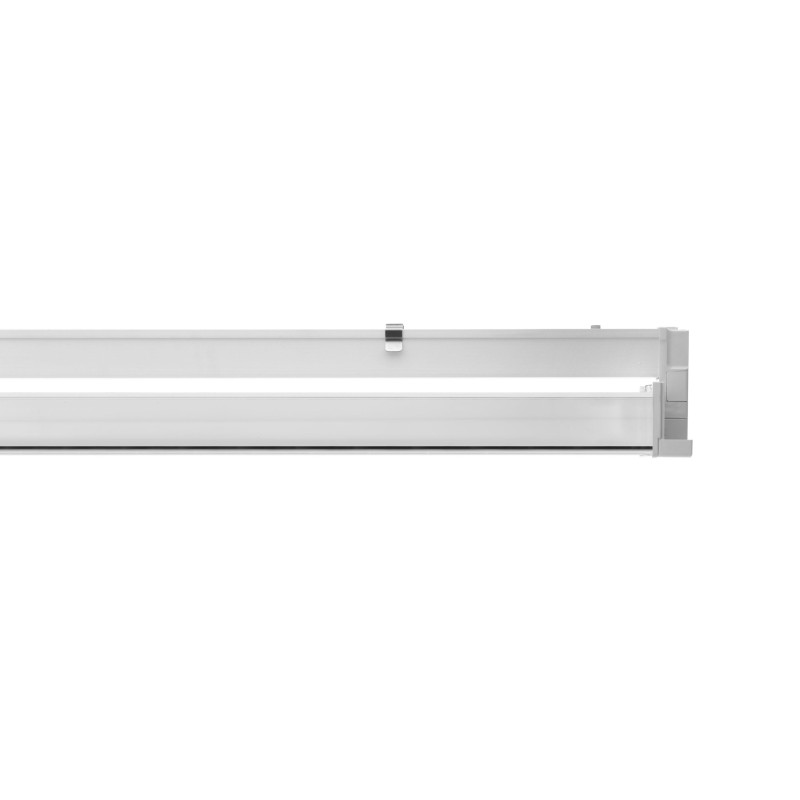

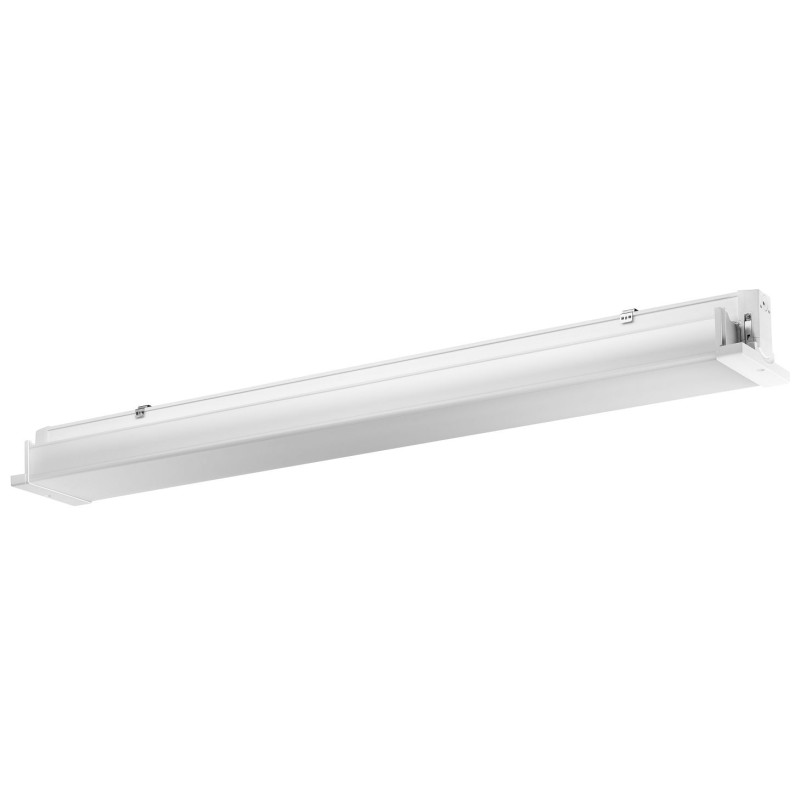

74811620 TAUNUS SKII DALI 185 1546mm PO 1x31W 100° 4200lm
TAUNUS SKII DALI 185 1546mm PO 1x31W 100° 4200lm, 4000K, class II, with TW 5x2,5mm²+2x1,5mm². LED luminaire in class II for flush mounting, optimized for transport companies, with optional PC or PRACHTOPAL cover, GRP polyester housing, MID-Power LEDs, integrated converter and age-resistant silicone seals. Suitable for ceiling and panel ceiling installation (IK08).
- Recessed luminaire for panel and module 100 ceilings
- Suitable for existing double panel ceilings width 185 in 1:1 replacement or in new buildings
- Easy to install recessed LED luminaire
- Ideal for distribution levels and underpasses
- Housing not visible for a harmonious appearance
- class II
technical data
| Ausstrahlwinkel | 100 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1546 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK06 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | not exchangeable |
| Through-wiring | 5x2.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Protection class | class II |
| Abmessungen (L x B x H) | 1546 x 192 x 137 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -25 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -25 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 4200 lm |
| Leistung | 31 W |
| Lichtausbeute | 135 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 90 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 21.1 / 21.1 |
| Lebensdauer L70B50 (@Ta 25°C) | 189090 h |
| Lebensdauer L80B50 (@Ta 25°C) | 118490 h |
| Lebensdauer L90B50 (@Ta 25°C) | 56231 h |
| Lebensdauer L70B10 (@Ta 25°C) | 142194 h |
| Lebensdauer L80B10 (@Ta 25°C) | 89418 h |
| Lebensdauer L90B10 (@Ta 25°C) | 42866 h |
| Lebensdauer L70B50 (@Ta max) | 181164 h |
| Lebensdauer L80B50 (@Ta max) | 113500 h |
| Lebensdauer L90B50 (@Ta max) | 53938 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 45 |
| Leitungsschutz C16A | 76 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Custom-fit Recessed luminaire TAUNUS SKII DALI 185 1546mm PO 1x31W 100° 4200lm 4000K, class II, with TW 5x2,5mm²+2x1,5mm². LED luminaire in class II for flush mounting, optimized for transport companies, with optional PC or PRACHTOPAL cover, GRP polyester housing, MID-Power LEDs, integrated converter and age-resistant silicone seals. Suitable for ceiling and panel ceiling installation (IK08). Item number: 74811620 GTIN: 4018098355847 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5+2x1.5 (DALI); Dimensions: LxWxH: 1546mm x 192mm x 137mm; Diameter: mm
