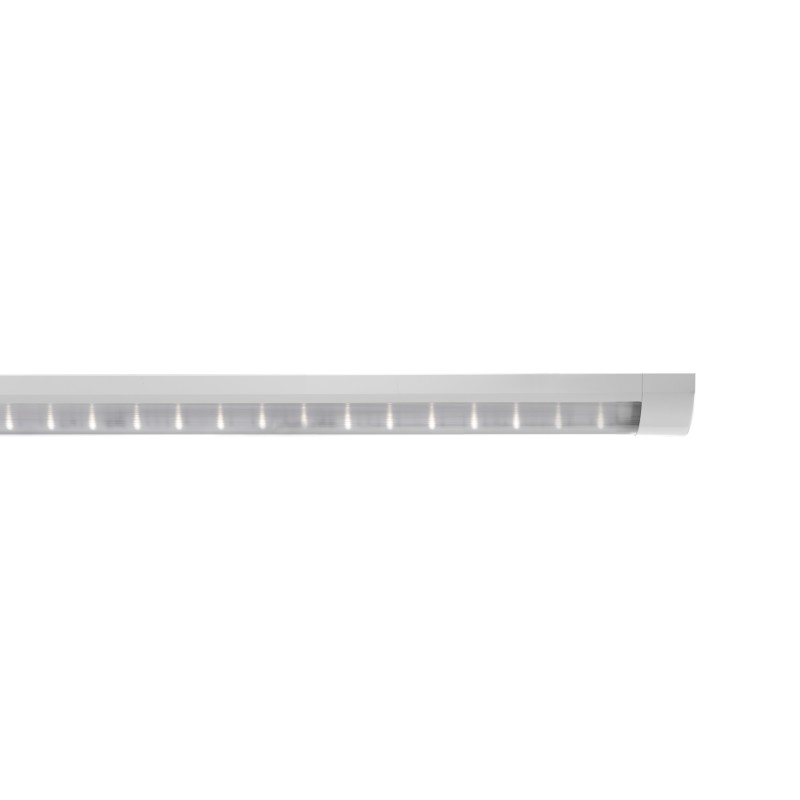

76038591 TROJA G2 SKII DALI 1261mm PCO 1x65W 110° 6500lm
TROJA G2 SKII DALI 1261mm PCO 1x65W 110° 6500lm, 4000K, class II, without TW, Surge protection. Vandal-proof LED luminaire (IK10, 100 joules and class II) with robust aluminum housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM.
- vandalism and access-protected LED luminaire IK11 ( 100 joules )
- ant graffiti protection
- ideally suited for security-relevant areas as well as in environments at risk of vandalism such as transport companies, underpasses, public areas, traffic facilities, train stations, prisons, etc.
- ideally suited for the PRACHT media channel
- architecturally appealing due to flat geometry and exterior color, suitable for protected outdoor areas (IP 65)
- 4kV transient protection and inrush current limitation
- class II
technical data
| Dimensions (L x W x H) | 1261 x 260 x 70 mm |
|---|---|
| Luminous flux | 6500 lm |
| Performance | 65 W |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Beam angle | 110 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | Yes |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1261 mm |
| Color rendering Ra | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 20.0 / 21.9 |
| IP protection class | IP65 |
| IK Impact resistance | IK11 (100J) |
| Protection class | SK II |
| Temperature range | -25 ... +40 °C |
| Lifetime L70B50 (@Ta 25°C) | 112212 h |
| Lifetime L80B50 (@Ta 25°C) | 71242 h |
| Lifetime L90B50 (@Ta 25°C) | 34655 h |
| Lifetime L70B10 (@Ta 25°C) | 103990 h |
| Lifetime L80B10 (@Ta 25°C) | 65435 h |
| Lifetime L90B10 (@Ta 25°C) | 31530 h |
| Lifetime L70B50 (@Ta max) | 101392 h |
| Lifetime L80B50 (@Ta max) | 64106 h |
| Lifetime L90B50 (@Ta max) | 31130 h |
| Line protection B16A | 15 Luminaires |
| Line protection C16A | 25 Luminaires |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 40 °C |
| Energy efficiency class Light source | D |
| Dimming/Control | DALI |
Tender text
Vandalism-protected Surface-mounted light TROJA G2 SKII DALI 1261mm PCO 1x65W 110° 6500lm 4000K, class II, without TW, Surge protection. Vandal-proof LED luminaire (IK10, 100 joules and class II) with robust aluminum housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM. Item number: 76038591 GTIN: 4018098354215 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1261mm x 260mm x 70mm; Diameter: mm
