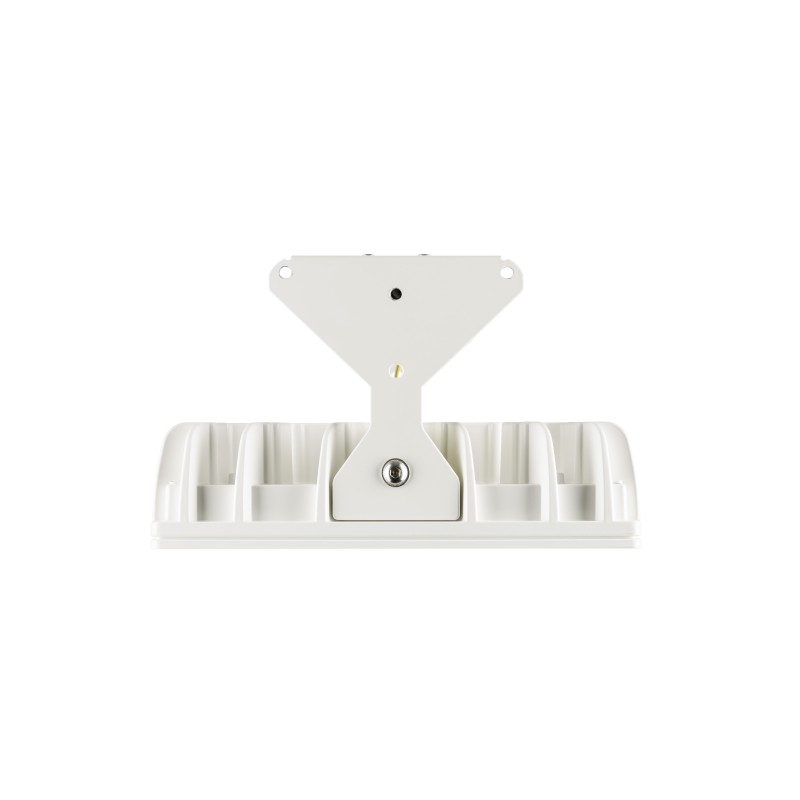

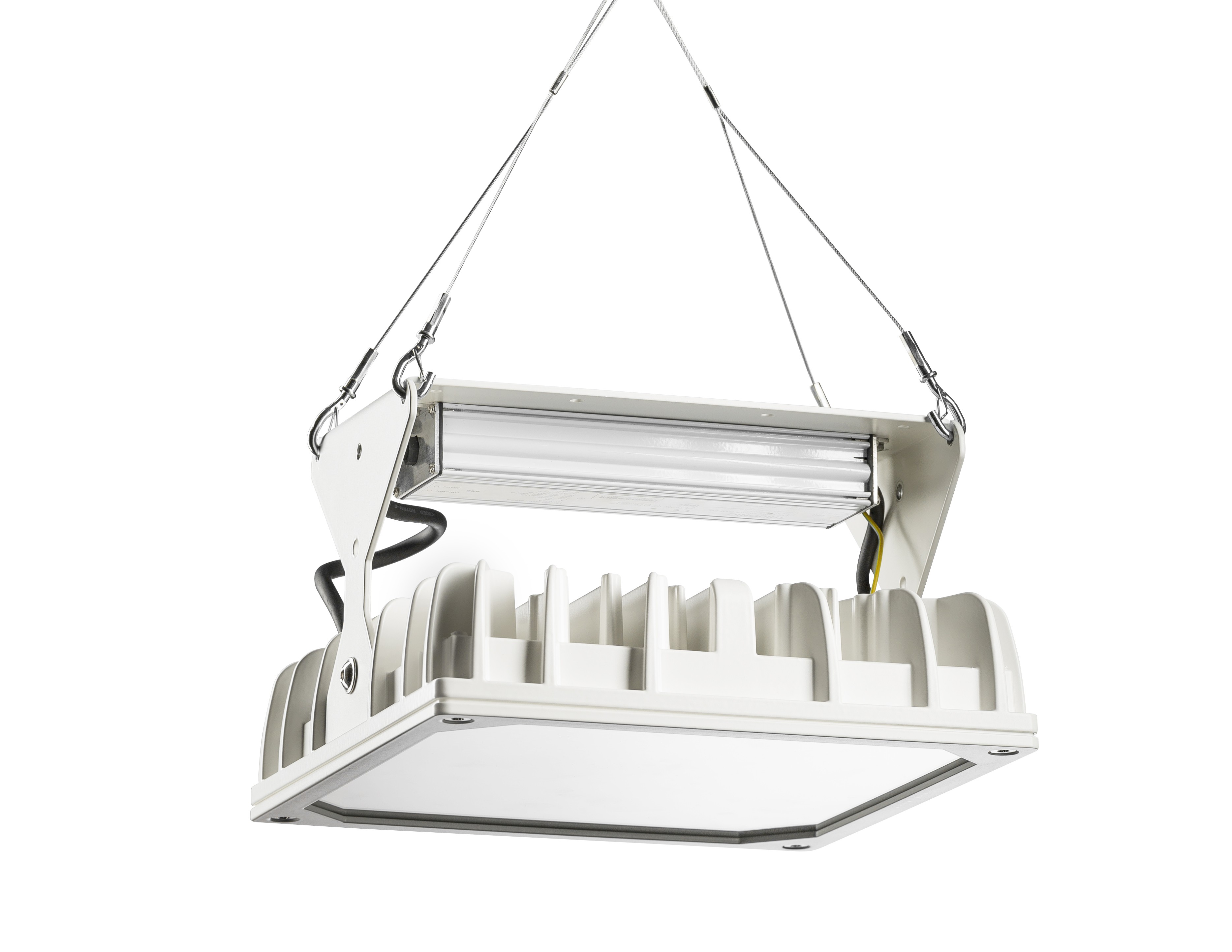

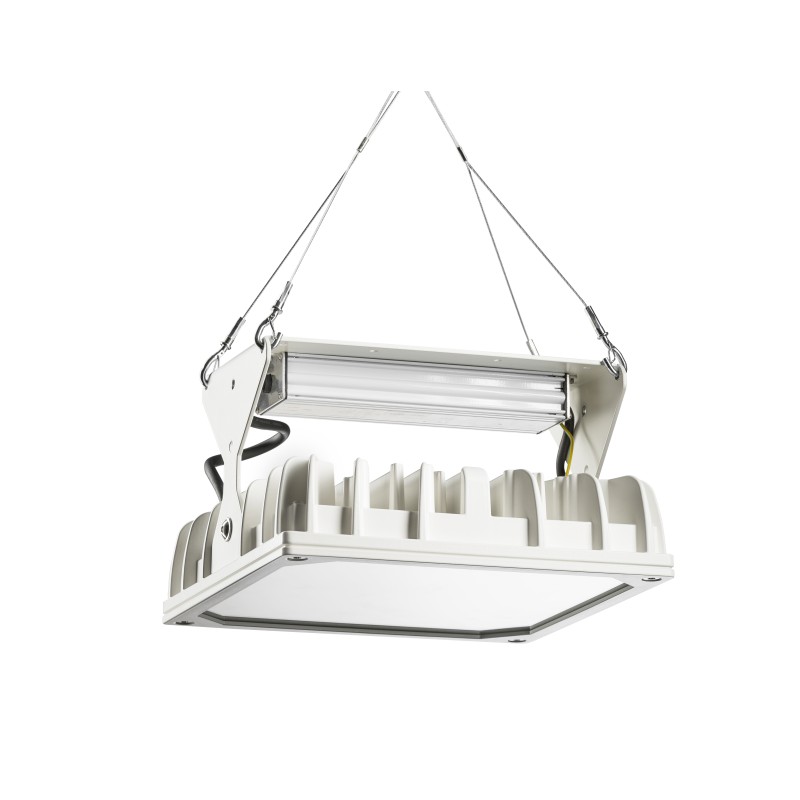

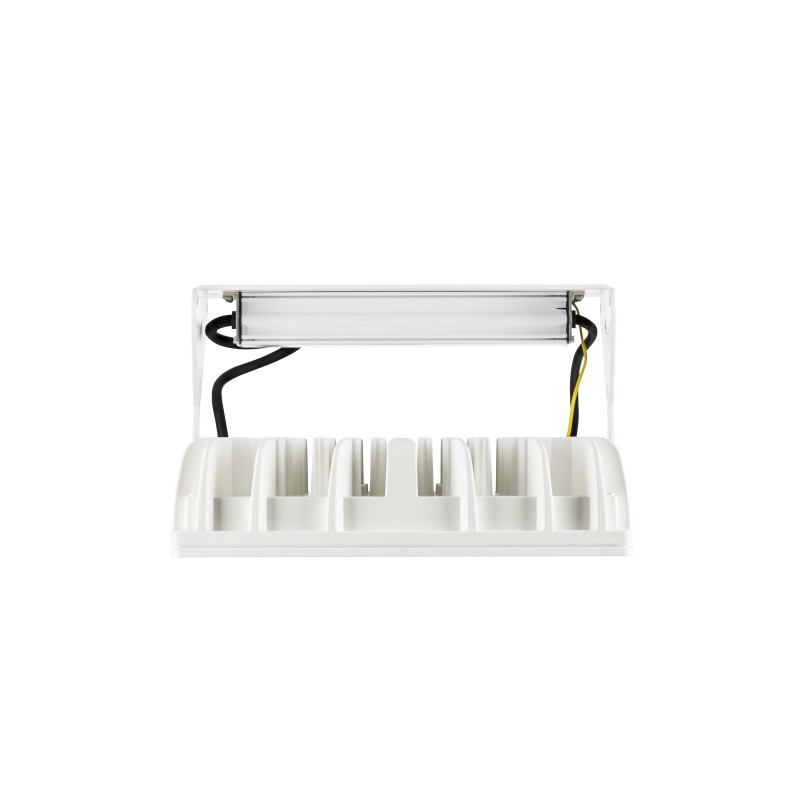

86140201 QUADRONIUS 0288mm ESG 1x137W 090° 20000lm
QUADRONIUS 0288mm ESG 1x137W 090° 20000lm, 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, die-cast aluminum housing and integrated converter. With age-resistant silicone seals, easy to install and expandable as XLS series. Flexible mounting options and optional control via Bluetooth or DALI.
- Configurable highbay luminaire (light color, beam characteristics and resistance)
- available for high and low temperatures (-40 to +75° degrees), swimming pools, food industry & unprotected outdoor areas
- REBUILD product: new components, old spotlight
- Ideal for logistics, high-bay warehouses, industry, cold stores or agriculture
- IFS certified & splinter protection
- single or double flame
- Sensors and control via DALI and CASAMBI
technical data
| Ausstrahlwinkel | 90 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 288 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP66 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 288 x 288 x 170 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -30 … +45 °C |
| Versorgungsspannung | AC |
| Nennspannung / Frequenz | 220–240V 50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | with limitation |
| Umgebungstemperatur (min) | -30 °C |
| Umgebungstemperatur (max) | 45 °C |
| Lichtstrom | 20000 lm |
| Leistung | 137 W |
| Lichtausbeute | 146 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 27.8 / 27.7 |
| Lebensdauer L70B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B50 (@Ta 25°C) | 70000 h |
| Lebensdauer L90B50 (@Ta 25°C) | 33000 h |
| Lebensdauer L70B10 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B10 (@Ta 25°C) | 64000 h |
| Lebensdauer L90B10 (@Ta 25°C) | 34000 h |
| Lebensdauer L70B50 (@Ta max) | 65000 h |
| Lebensdauer L80B50 (@Ta max) | 41000 h |
| Lebensdauer L90B50 (@Ta max) | 19000 h |
| Stoßspannungsfestigkeit L/N-PE | 10.0 kV |
| Energieeffizienzklasse Lichtquelle | E |
| Leitungsschutz B16A | 6 |
| Leitungsschutz C16A | 11 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
More robust High Bay QUADRONIUS 0288mm ESG 1x137W 090° 20000lm 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, die-cast aluminum housing and integrated converter. With age-resistant silicone seals, easy to install and expandable as XLS series. Flexible mounting options and optional control via Bluetooth or DALI. Item number: 86140201 GTIN: 4018098323976 Technical details/specification: Cover made of single-pane safety glass; Housing made of Aluminium White RAL 9010; 220–240V 50/60 Hz; Energy efficiency class E; Number of light sources / LED rows: 1; IP66; Through-wiring in mm²: without; Dimensions: LxWxH: 288mm x 288mm x 170mm; Diameter: mm
