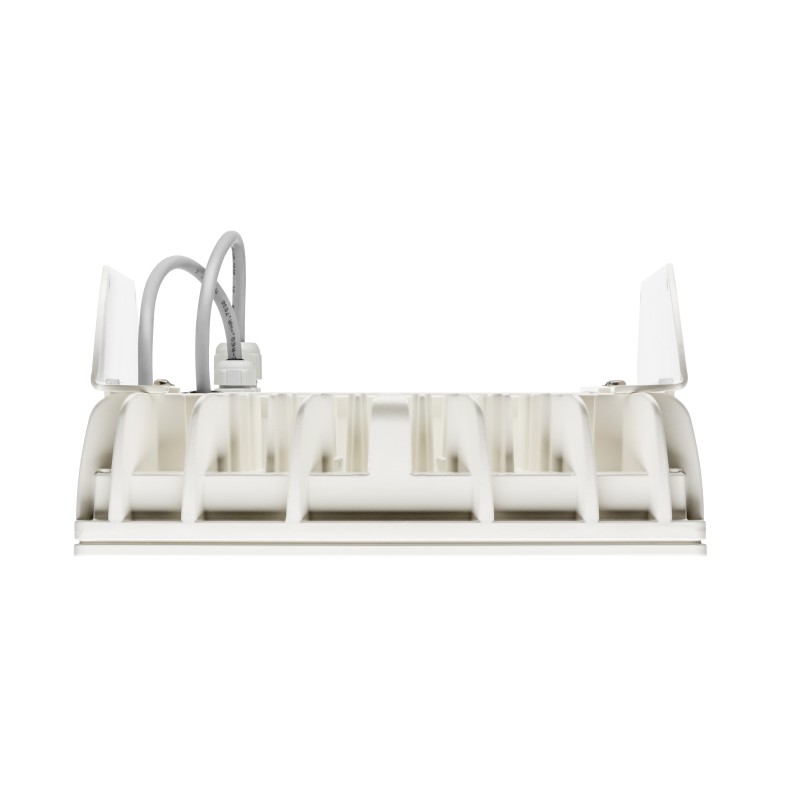

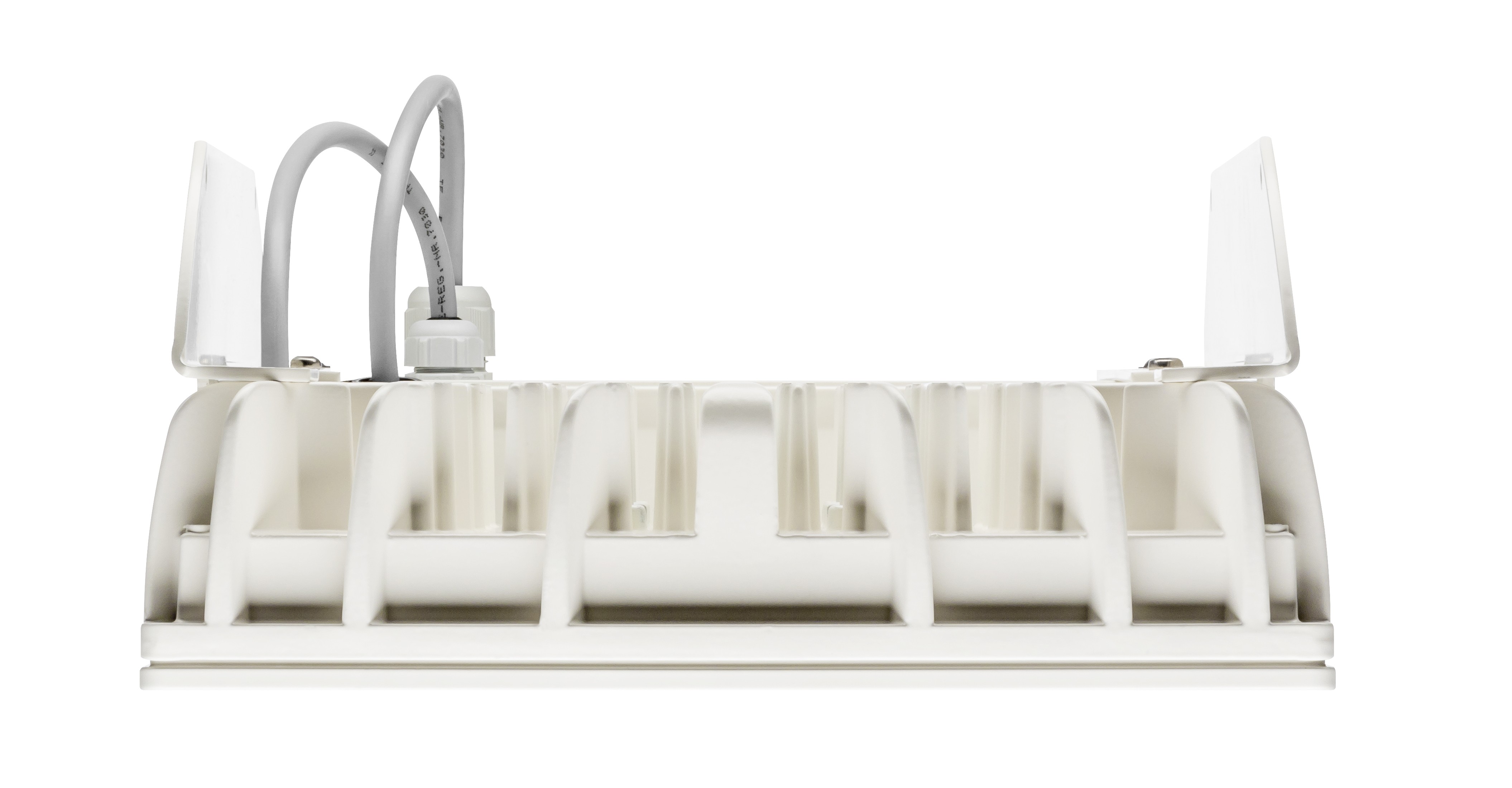

86380221 QUADRONIUS INDUSTRY DALI 0457mm ESG 1x134W 065° 15000lm

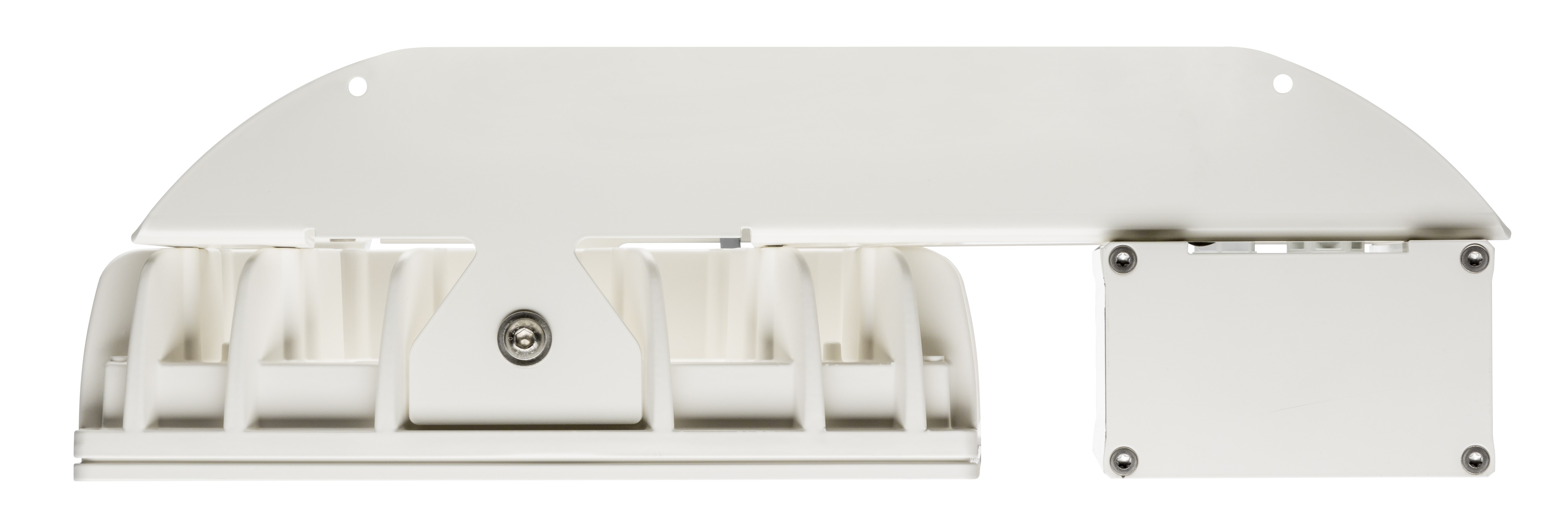

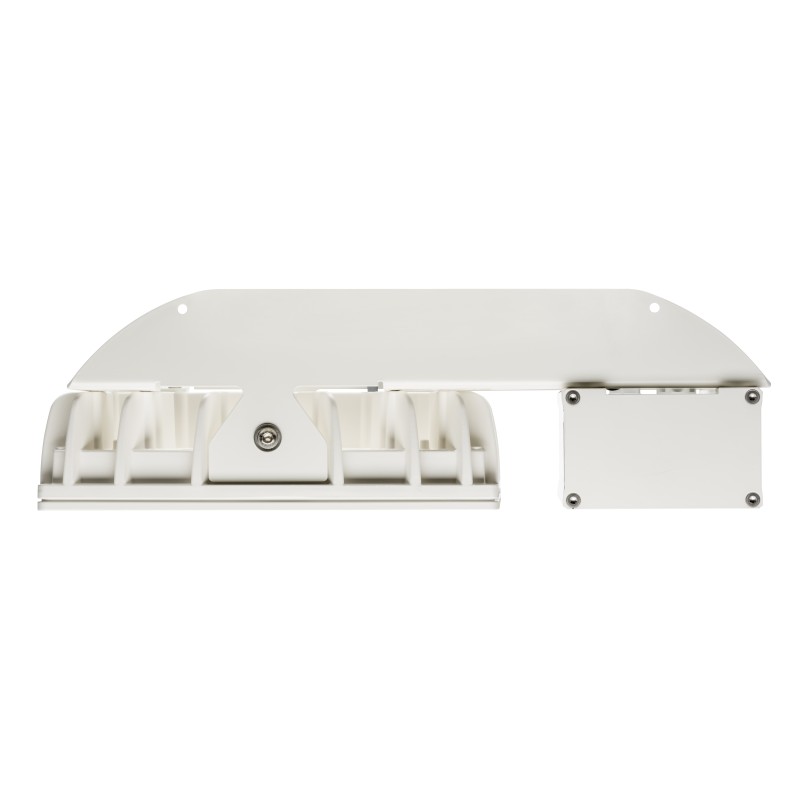

QUADRONIUS INDUSTRY DALI 0457mm ESG 1x134W 065° 15000lm, 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for demanding industrial applications at temperatures from -40°C to 50°C. Low-maintenance, with die-cast aluminum housing, integrated converter and quick plug-in system. Easy installation thanks to wire pendant with quick adjustment and optional mounting brackets for wall and ceiling mounting.
- Configurable highbay luminaire for high requirements (light color, beam characteristics and resistance)
- Available for high and low temperatures (-40 to +75° degrees), swimming pools, food industry & unprotected outdoor areas
- REBUILD product: new components, old spotlight
- Ideal for logistics, high-bay warehouses, industry, cold stores or agriculture
- IFS certified & splinter protection
- single or double flame
- Even longer service life & resistant to higher temperatures thanks to industrial components
technical data
| Dimensions (L x W x H) | 457 x 288 x 134 mm |
|---|---|
| Luminous flux | 15000 lm |
| Performance | 134 W |
| Luminous efficacy | 112 lm/W |
| Color temperature | 4000 K |
| Beam angle | 65 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 457 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 22.1 / 22.1 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -40 ... +50 °C |
| Lifetime L70B50 (@Ta 25°C) | 100000 h |
| Lifetime L80B50 (@Ta 25°C) | 100000 h |
| Lifetime L90B50 (@Ta 25°C) | 100000 h |
| Lifetime L70B10 (@Ta 25°C) | 100000 h |
| Lifetime L80B10 (@Ta 25°C) | 100000 h |
| Lifetime L90B10 (@Ta 25°C) | 100000 h |
| Lifetime L70B50 (@Ta max) | 100000 h |
| Lifetime L80B50 (@Ta max) | 100000 h |
| Lifetime L90B50 (@Ta max) | 100000 h |
| Line protection B16A | 5 Luminaires |
| Line protection C16A | 7 Luminaires |
| Surge voltage resistance L/N-PE | 6.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -40 °C |
| Ambient temperature (max) | 50 °C |
| Energy efficiency class Light source | D |
| Dimming/Control | DALI |
Tender text
More durable High Bay QUADRONIUS INDUSTRY DALI 0457mm ESG 1x134W 065° 15000lm 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for demanding industrial applications at temperatures from -40°C to 50°C. Low-maintenance, with die-cast aluminum housing, integrated converter and quick plug-in system. Easy installation thanks to wire pendant with quick adjustment and optional mounting brackets for wall and ceiling mounting. Item number: 86380221 GTIN: 4018098267652 Technical details/specification: Cover made of single-pane safety glass; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 457mm x 288mm x 134mm; Diame
