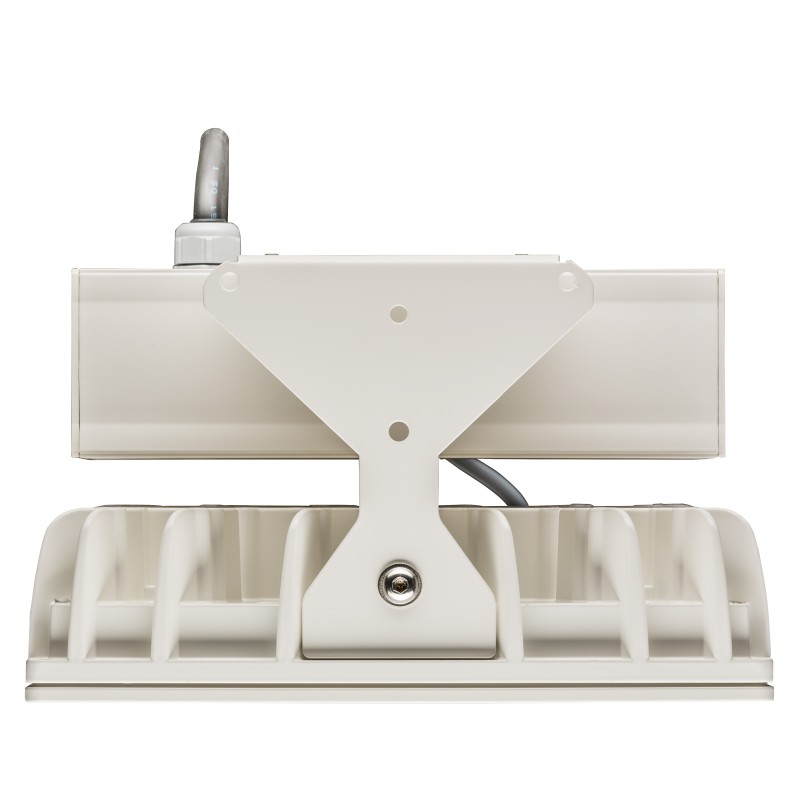

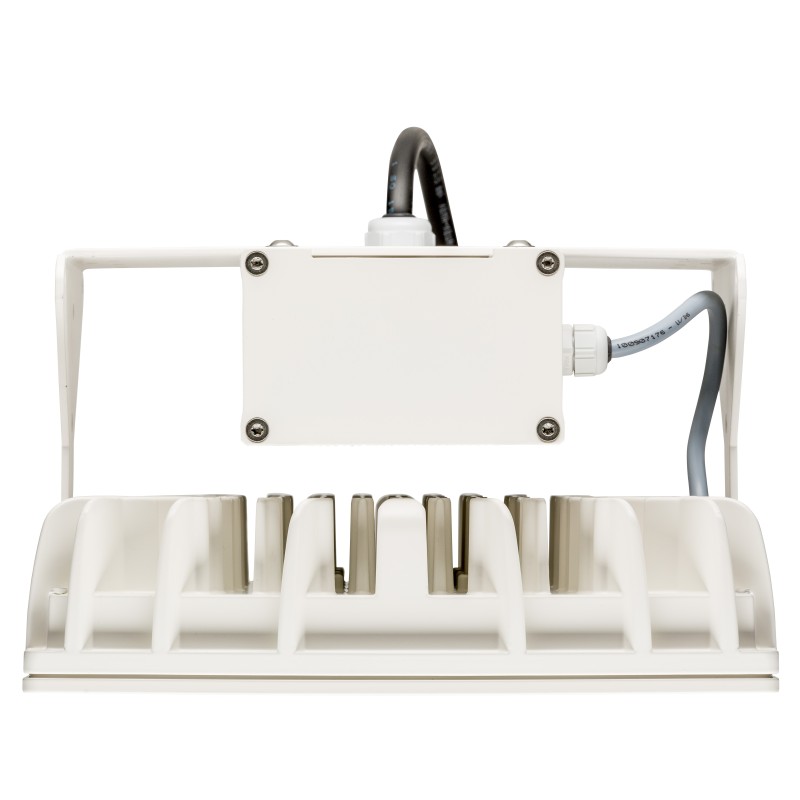

86540121x01 QUADRONIUS XLS C DM 0288mm ESG 1x97W A060° 15000lm
QUADRONIUS XLS C DM 0288mm ESG 1x97W A060° 15000lm, 4000K, class I, without TW, RAL 9010, asymmetric, Casambi Dali Master. LED spotlight with toughened safety glass cover, die-cast aluminum housing and integrated converter. With age-resistant silicone seals, easy to install and expandable as XLS series. Flexible mounting options and optional control via Bluetooth or DALI.
- Configurable highbay luminaire (light color, beam characteristics and resistance)
- available for high and low temperatures (-40 to +75° degrees), swimming pools, food industry & unprotected outdoor areas
- REBUILD product: new components, old spotlight
- Ideal for logistics, high-bay warehouses, industry, cold stores or agriculture
- IFS certified & splinter protection
- single or double flame
- Sensors and control via DALI and CASAMBI
technical data
| Beam angle | 60 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | nein |
| REACH | Nein |
| market indicator | CE |
| length | 288 mm |
| multi-lumen | Nein |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| through-wiring | without |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 288 x 288 x 170 mm |
| Dimmable/Controllable | Casambi |
| Temperaturbereich | -20 … +45 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 45 °C |
| Lichtstrom | 15000 lm |
| Leistung | 97 W |
| light output | 155 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 24.8 / 25.0 |
| Lifetime L70B50 (@Ta 25°C) | 100000 h |
| Service life L80B50 (@Ta 25°C) | 80000 h |
| Lifetime L90B50 (@Ta 25°C) | 38000 h |
| Lifetime L70B10 (@Ta 25°C) | 100000 h |
| Lifetime L80B10 (@Ta 25°C) | 76000 h |
| Lifetime L90B10 (@Ta 25°C) | 36000 h |
| Lifetime L70B50 (@Ta max) | 86000 h |
| Lifetime L80B50 (@Ta max) | 55000 h |
| Lifetime L90B50 (@Ta max) | 27000 h |
| Circuit breaker B16A | 6 Leuchten |
| Circuit breaker C16A | 10 Leuchten |
| Surge voltage resistance L/N-PE | 10.0 kV |
| Energy efficiency class of light source | E |
| Number of slave lights | 24 |
Tender text
More robust High Bay QUADRONIUS XLS C DM 0288mm ESG 1x97W A060° 15000lm 4000K, class I, without TW, RAL 9010, asymmetric, Casambi Dali Master. LED spotlight with toughened safety glass cover, die-cast aluminum housing and integrated converter. With age-resistant silicone seals, easy to install and expandable as XLS series. Flexible mounting options and optional control via Bluetooth or DALI. Item number: 86540121x01 GTIN: 4018098329893 Technical details/specification: Cover made of single-pane safety glass; Housing made of Aluminium White RAL 9010; 220–240V 50/60 Hz; Energy efficiency class E; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 288mm x 288mm x 170mm; Diameter: mm
