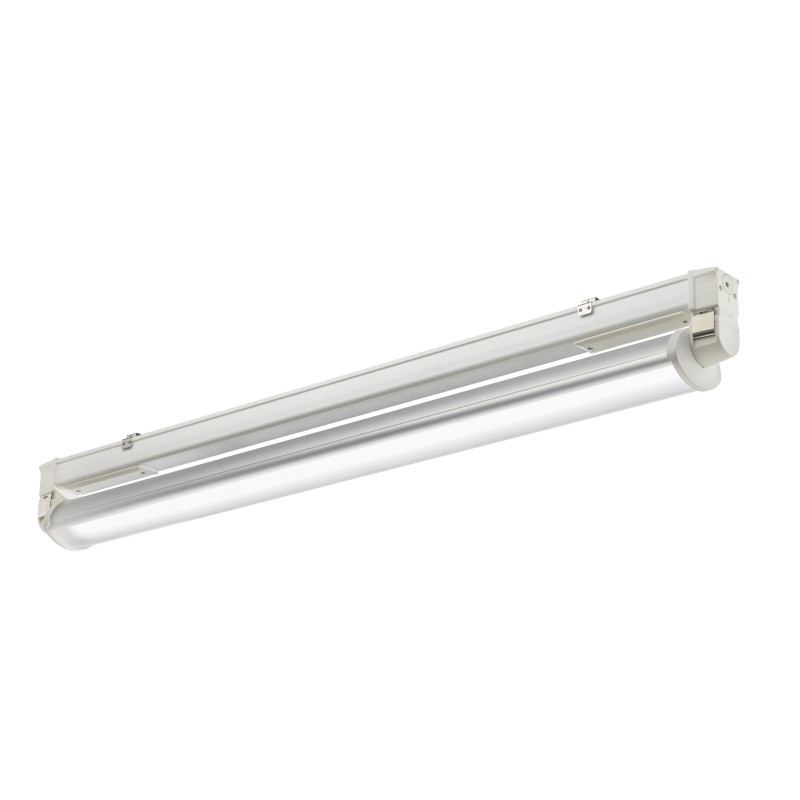

9480249nx01 APOLLO G2 INDUSTRY XLS C DM 1260mm PO 1x33W 060° 5800lm
APOLLO G2 INDUSTRY XLS C DM 1260mm PO 1x33W 060° 5800lm, 4000K, class I, with TW 5x2,5mm²+2x1,5mm², Casambi Dali Master. The plastic parts of this luminaire are made from 21% recycled material. The new APOLLO industrial reflector luminaire: maximum efficiency and durability, IP65 protection, pivoting reflectors with industrial components, robust, acid-resistant housing and simple installation - perfect for demanding applications.
- Flexibly configurable DALI damp proof luminaire with rotatabale reflectors
- Single or double reflectors
- largely acid & alkali-resistant due to (PRACHT-OPAL)
- compatible with trunking systems for quick installation with PRACHT-EASY-CONNECT
- IFS-compliant
- incl. CASAMBI/App Connect control: via Bluetooth in a mesh network ideal for existing installations, no need for new cabling
- Built-in industrial components for higher transient resistance 4kV and longer service life due to temperature resistance (-45 to +65 degrees)
technical data
| Beam angle | 60 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | Ja, mit Artikelnummer 9480249nx01NZ |
| REACH | Nein |
| market indicator | CE |
| length | 1260 mm |
| multi-lumen | Nein |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| through-wiring | 5x2.5+2x1.5 (DALI) |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1260 x 105 x 152 mm |
| Dimmable/Controllable | Casambi |
| Temperaturbereich | -20 … +50 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 50 °C |
| Lichtstrom | 5800 lm |
| Leistung | 33 W |
| light output | 176 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 24.1 / 18.1 |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Service life L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 193955 h |
| Lifetime L80B50 (@Ta max) | 121336 h |
| Lifetime L90B50 (@Ta max) | 57640 h |
| Circuit breaker B16A | 30 Leuchten |
| Circuit breaker C16A | 50 Leuchten |
| Surge voltage resistance L/N-PE | 4.0 kV |
| REMADE Score | 21 % |
| Zertifizierungszeichen | HACCP IFS |
| Energy efficiency class of light source | B |
| Number of slave lights | 29 |
Tender text
Durable Reflector luminaire APOLLO G2 INDUSTRY XLS C DM 1260mm PO 1x33W 060° 5800lm 4000K, class I, with TW 5x2,5mm²+2x1,5mm², Casambi Dali Master. The plastic parts of this luminaire are made from 21% recycled material. The new APOLLO industrial reflector luminaire: maximum efficiency and durability, IP65 protection, pivoting reflectors with industrial components, robust, acid-resistant housing and simple installation - perfect for demanding applications. Item number: 9480249nx01 GTIN: 4018098424352 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5+2x1.5 (DALI); Dimensions: LxWxH: 1260mm x 105mm x 152mm; Diameter: mm
