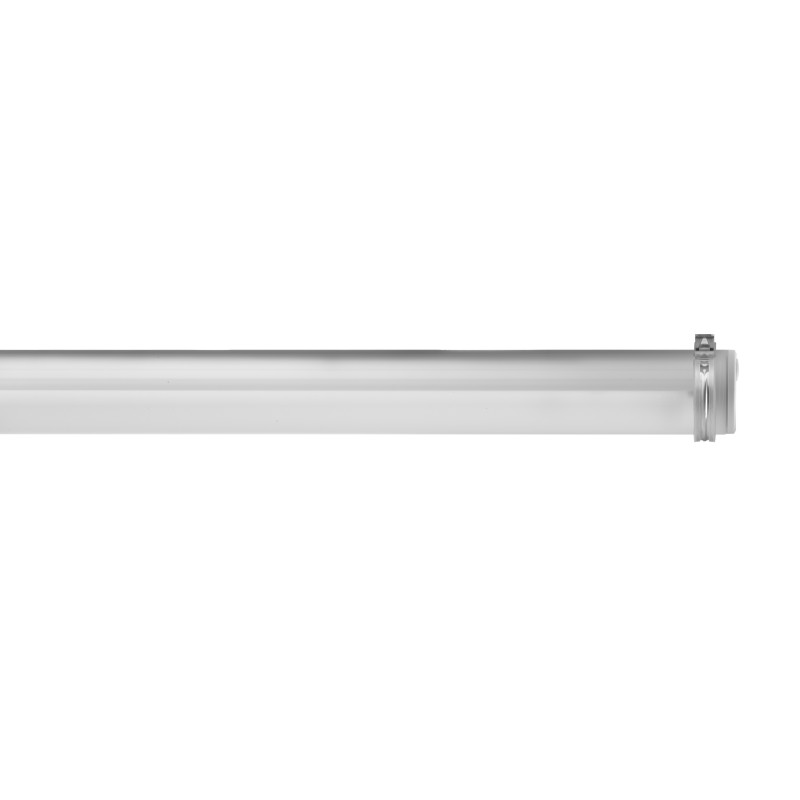

7a034827 TUBIS DB AG DALI 0700mm PO 1x12.20W 125° 1599lm

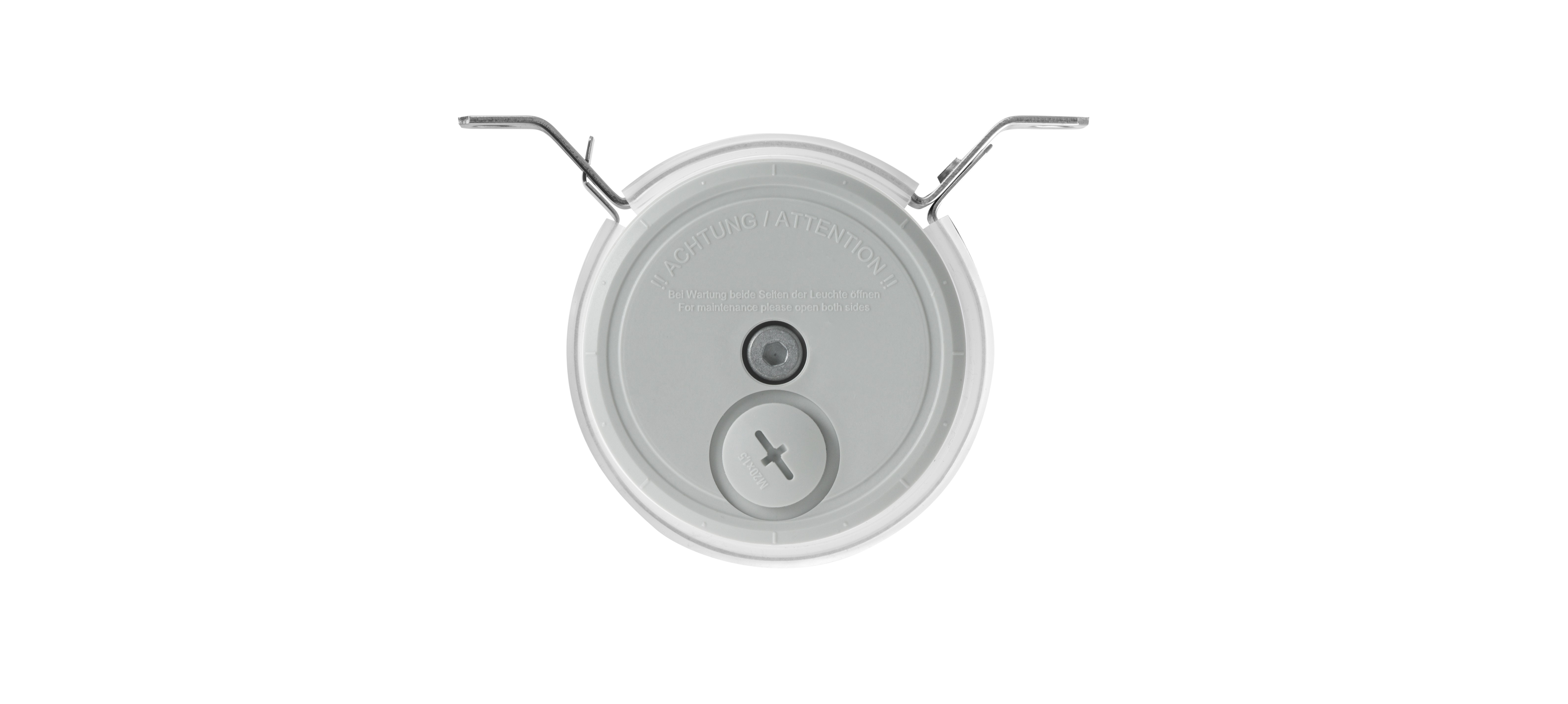

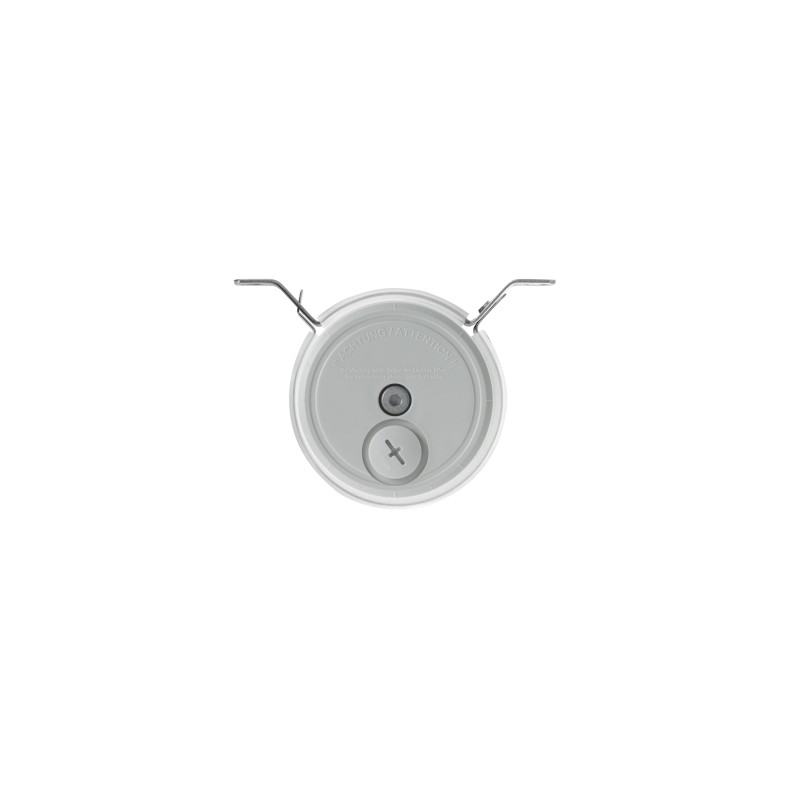

TUBIS DB AG DALI 0700mm PO 1x12.20W 125° 1599lm, 4000K, class II, without TW, Surge protection. DB-certified LED circular tube light for Group 2 working pits with Ra90 LEDs, R9 > 40. Impact-resistant PRACHTOPAL housing (Ø 90 mm), 360° rotatable, resistant to acids and alkalis. Ageing-resistant silicone seals, flexible mounting with stainless steel clamps.
- DB certified for Group 2 work pits
- High-pressure waterproof and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- Acid and alkali-resistant
- 360° degrees rotatable light
- Ra90 and R9 > 40
technical data
| Dimensions (L x W x H) | 700 x 90 x 105 mm |
|---|---|
| Luminous flux | 1599 ch |
| Performance | 12 W |
| Luminous efficacy | 133 lm/W |
| Color temperature | 4000 K |
| Beam angle | 125 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 700 mm |
| Color rendering Ra | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 21.2 / 23.5 |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK10 |
| Protection class | SK II |
| Temperature range | -25 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 231103 h |
| Lifetime L80B50 (@Ta 25°C) | 146191 h |
| Lifetime L90B50 (@Ta 25°C) | 71294 h |
| Lifetime L70B10 (@Ta 25°C) | 200343 h |
| Lifetime L80B10 (@Ta 25°C) | 126317 h |
| Lifetime L90B10 (@Ta 25°C) | 61022 h |
| Lifetime L70B50 (@Ta max) | 206516 h |
| Lifetime L80B50 (@Ta max) | 130554 h |
| Lifetime L90B50 (@Ta max) | 63567 h |
| Line protection B16A | 26 Luminaires |
| Line protection C16A | 44 Luminaires |
| Surge voltage resistance L/N-PE | 10.0 kV |
| Rated voltage / frequency | 220-240V 50 Hz |
| Emergency lighting suitability | Yes, with article number 7a034827NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | not interchangeable |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 45 °C |
| Certification mark | DB ENEC |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
DB-listed Round tube luminaire TUBIS DB AG DALI 0700mm PO 1x12.20W 125° 1599lm 4000K, class II, without TW, Surge protection. DB-certified LED circular tube light for Group 2 working pits with Ra90 LEDs, R9 > 40. Impact-resistant PRACHTOPAL housing (Ø 90 mm), 360° rotatable, resistant to acids and alkalis. Ageing-resistant silicone seals, flexible mounting with stainless steel clamps. Item number: 7a034827 GTIN: 4018098452119 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 50 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: without; Dimensions: LxWxH: 700mm x 90mm x 105mm; Diameter: 90mm
